Technical differences between diode bridge and isolating relay

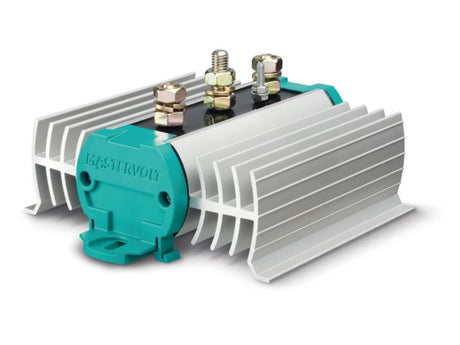

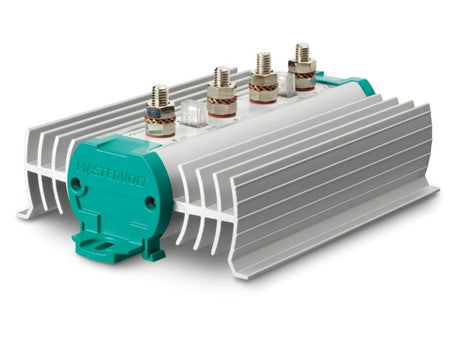

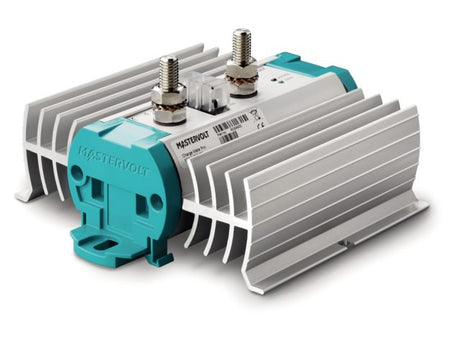

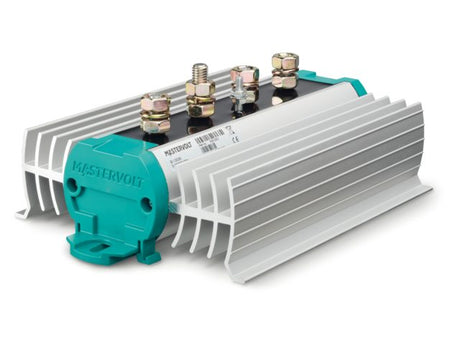

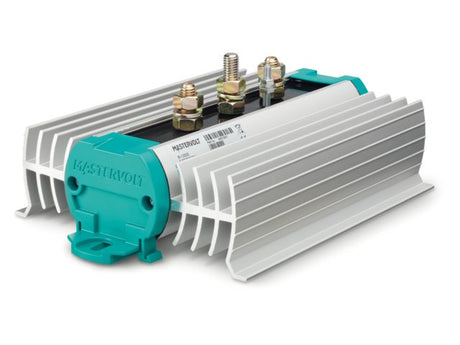

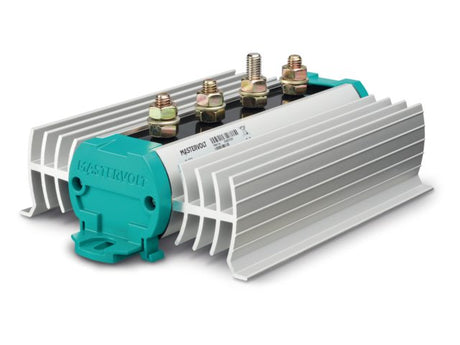

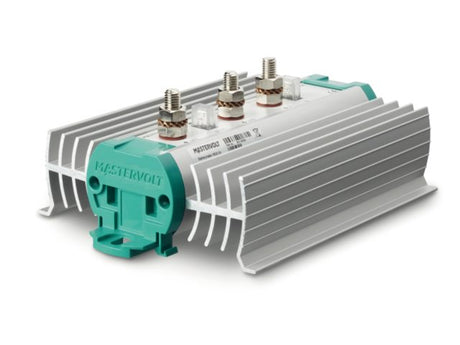

The main technical difference between the two systems is the way batteries are separated and charged. The diode bridge is an electronic device that uses semiconductors. This makes it maintenance-free and extremely reliable, but there is always a slight voltage drop, meaning the batteries receive slightly less charging voltage. This can affect the total charging capacity.

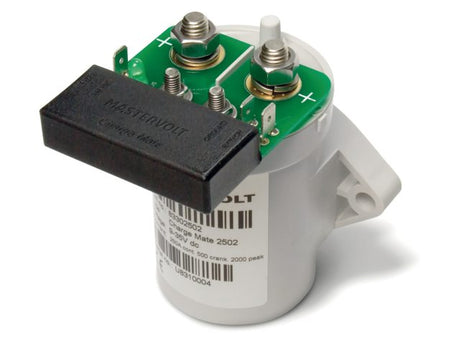

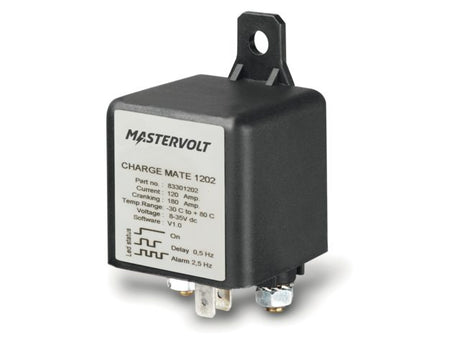

The isolating relay, on the other hand, is a mechanical system that directly connects batteries as soon as the alternator supplies power. This ensures minimal voltage loss and efficient charging of the batteries. However, because it uses moving parts, wear and tear can occur over time, which affects the system's lifespan.
Advantages and disadvantages: diode bridge versus isolating relay
A diode bridge excels in reliability because it has no moving parts. This minimizes the risk of mechanical failure and ensures a long service life. The downside is that there's always a voltage drop, which means the batteries are charged slightly less efficiently. For boats that use their electrical system for extended periods or intensively, this difference can be noticeable in the total capacity.
A separator relay, on the other hand, offers the advantage of virtually no voltage loss. This means batteries are charged with the full voltage from the alternator or battery charger. This can result in a faster and more effective charging cycle, which is especially beneficial during intensive use or for batteries that are frequently deeply discharged.
The disadvantage of the isolating relay is that it contains a mechanical component that can wear out over time. This can cause the relay to fail after years of intensive use and require replacement.
Tips for correct sizing: current, charging capacity and voltage drop
When purchasing a diode bridge or isolating relay, correct sizing is crucial. The device must be matched to the current and charging capacity of your electrical system. An undersized component can lead to overheating, voltage drop, or even damage to the batteries and alternator.
It is therefore essential to make a good estimate in advance of the maximum consumption and the charging current that occurs in your system.
First, consider the number of amps the diode bridge or isolating relay must handle. This depends on the alternator's capacity and the total number of connected batteries. For powerful alternators or extensive battery systems, a more robust model capable of handling high currents without any problems is required.
Cable thickness also plays a role. Cables that are too thin cause additional voltage drop and heat generation, which reduces the efficiency of the charging process.
Another concern is voltage drop. This is particularly common with diode bridges due to the semiconductor technology. Therefore, be aware of a voltage drop of a few tenths of a volt and check whether your battery charger or alternator can compensate for this.
With isolating relays this effect is minimal, but here too it is important that the connections and fuses are selected correctly to prevent unnecessary energy loss.
How do you correctly install a diode bridge or isolating relay?
The foundation always begins with a good overview of the wiring and component placement. It's wise to position the system close to the batteries to keep cable lengths short and voltage drop to a minimum.
When installing a diode bridge, connect the alternator or battery charger to the device's input. The outputs are then connected to the various batteries you want to keep separate. Install appropriate fuses in each power line to protect the system from short circuits or overloads.
A cutoff relay is typically connected between the alternator and the batteries. The relay automatically switches on as soon as the alternator supplies power. Some relays use a D+ connection that controls the switching point. In that case, the D+ wire must be connected correctly to the alternator so that the relay switches on at the correct time.
