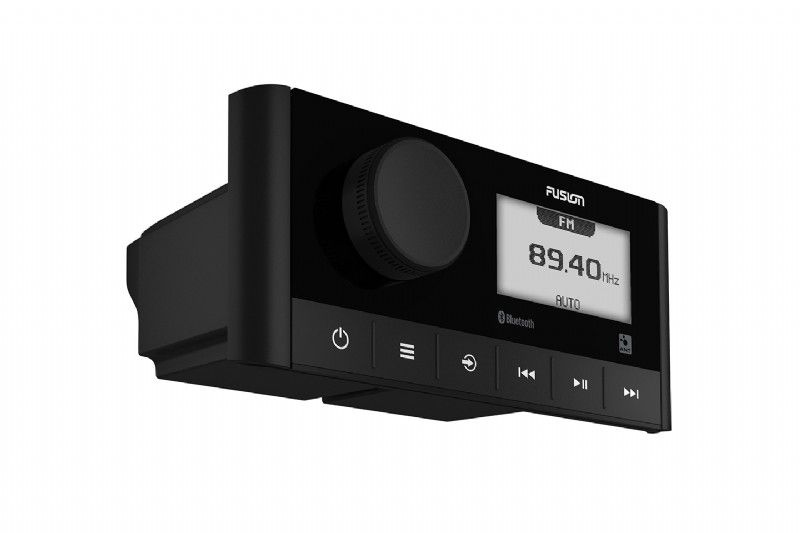

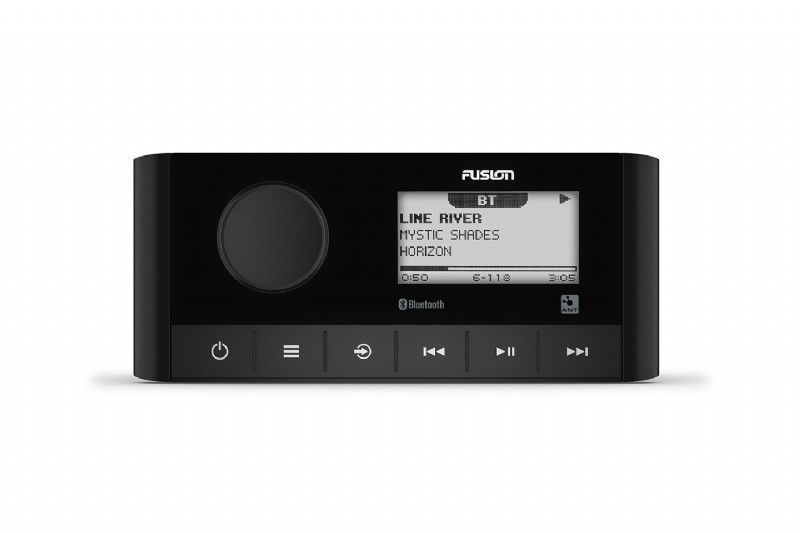

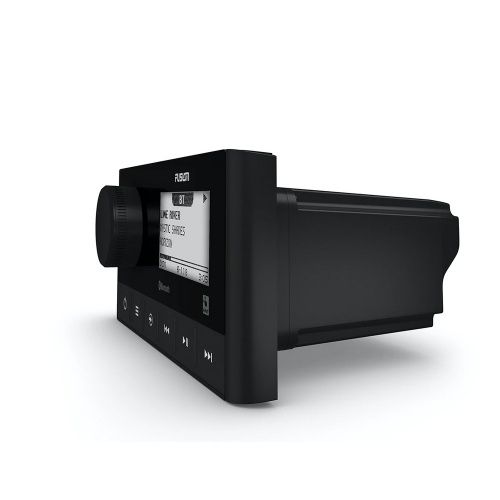

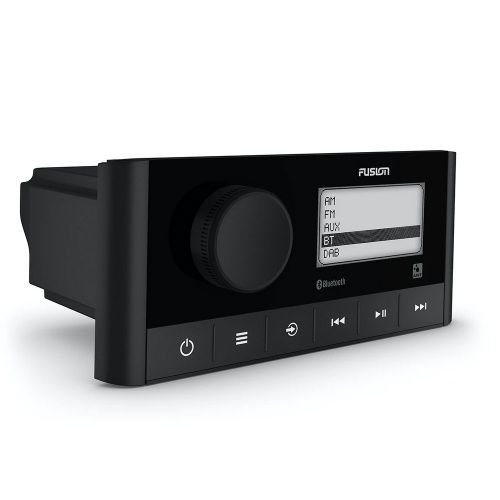

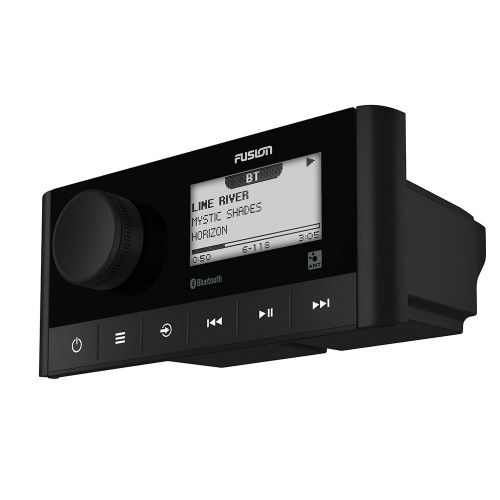

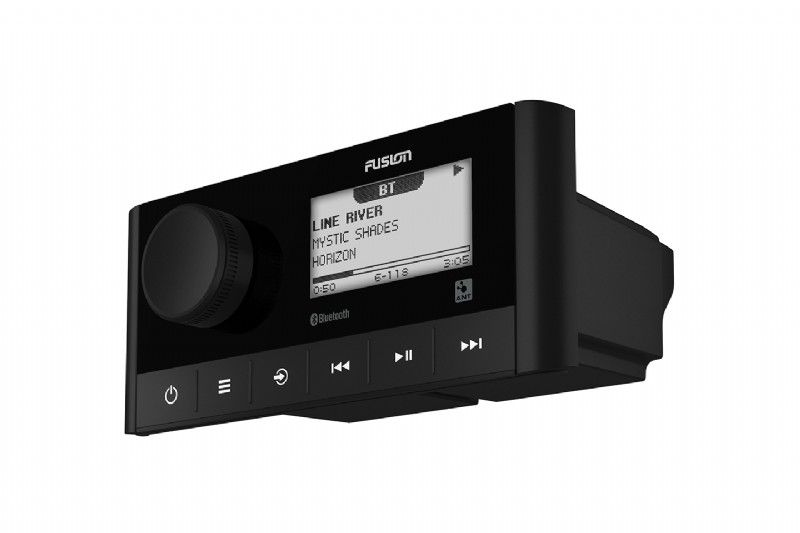

Fusion MS-RA60 marine stereo DAB+ Bluetooth – waterproof IPX6 IPX7 4

A marine stereo with DAB+ and Bluetooth gives you easy access to digital radio and wireless music on board. The Fusion MS-RA60 combines a compact design with two audio zones and an efficient Class D amplifier for clear sound. The front panel is water-resistant to IPX6 and IPX7, and the monochrome display is bonded to prevent condensation. Control it wirelessly via the Fusion-Link app or with a compatible Garmin watch via ANT.

Key Features

• 2 independent audio zones with local adjustments for volume, tone and balance
• Water-resistant front panel: IPX6 and IPX7, designed for the marine environment
• Built-in DAB/DAB+ tuner (available in Europe and Australia)
• Bluetooth audio and Fusion-Link control; ANT support for compatible Garmin watches
• Efficient Class-D amplifier for more power at lower current consumption
• Over-the-air software updates via Bluetooth with the Fusion-Link app
• 5.84 cm (2.3 in) perimeter bonded monochrome LCD, optimized for daylight
• Retrofittable: Fits into the MS-RA55 recess for easy upgrade

On-board operation and installation

The MS-RA60 is designed for reliable audio reproduction in harsh marine environments. Multi-Zone technology allows you to manage two zones independently, with naming, volume limits, and tone controls. The integrated DAB/DAB+ module delivers digital radio where supported, while Bluetooth and Fusion-Link provide intuitive wireless control via compatible smartphones and Garmin watches. The black bezel with a bonded LCD blends seamlessly into your dashboard for a clean, uniform installation.

The Class-D amplifier efficiently delivers power to four speaker terminals, and the RCA outputs allow you to easily connect an external amplifier or subwoofer. The MS-RA55's compatible mounting profile allows you to replace older units without modifying the existing panel, making installation quick and easy.

Specifications

• Dimensions (WxHxD): 156.9 x 68 x 103.2 mm (6.18 x 2.68 x 4.06 inches)
• Weight: 316 g (11.1 oz)
• Waterproofing: IPX6 and IPX7 (front only, properly installed)
• Supply voltage: 10.8–16 V DC
• Operating temperature: 0–50 °C (32–122 °F)
• Maximum current: 15 A
• Bluetooth range: up to 10 m (30 ft)
• ANT range: up to 3 m (10 ft)
• Wireless protocols: Bluetooth 2.4 GHz @ +12 dBm nominal / ANT 2.4 GHz @ +7 dBm nominal
• Compass safe distance: 150 mm (5.9 inches)
• Display: 5.84 cm (2.3 inch) monochrome dot-matrix LCD, perimeter bonded
• Built-in amplifier: Class-D (min. 4 ohms)
• Peak power: 180 W
• Rated Output Power (4 ohms): 22W RMS x 4 @ 14.4V, 10% THD
• Multi-Zone: 2 zones
• Sources: AM / FM / Bluetooth / AUX x1 / DAB+ (available in Europe and Australia)
• DAB+: built-in tuner; does not support traffic and weather functions
• Inputs: 1x RCA AUX
• AM/FM antenna: 1x Motorola connector
• Speaker outputs: 4 speaker connections (2 amplified zones)
• RCA pre-out (L, R and subwoofer): 1 zone (external amplification required)
• Line out: Zone 1 L + R (external amplification required)
• Subwoofer out: Zone 1 (external amplification required)
• Interface language options: Dutch, English, French, German, Italian, Spanish
• Software updates: Over-the-air via Bluetooth with the Fusion-Link app
• Warranty: 1 year
• MPN: MS-RA60

Why choose Fusion

Fusion combines modern design with advanced connectivity for onboard use. The MS-RA60 offers multi-zone audio, DAB/DAB+, Bluetooth, and ANT control in a compact design. The waterproof faceplate and bonded LCD are designed for the marine environment, while over-the-air updates easily keep the system up to date.

Order now

Prepare your boat for reliable onboard entertainment with the Fusion MS-RA60. Order easily from Watersports4fun and enjoy a clean installation thanks to the compatible mounting profile. Questions about connection or compatibility? Our team is happy to help you choose the right setup.

This marine stereo is a versatile boat radio with digital DAB+ reception, a 4-channel Class D amplifier, and two zones for separate audio. Thanks to Bluetooth streaming, an AUX input, and an AM/FM tuner, you can effortlessly create your favorite music, with subwoofer and pre-out options for an expandable system.
