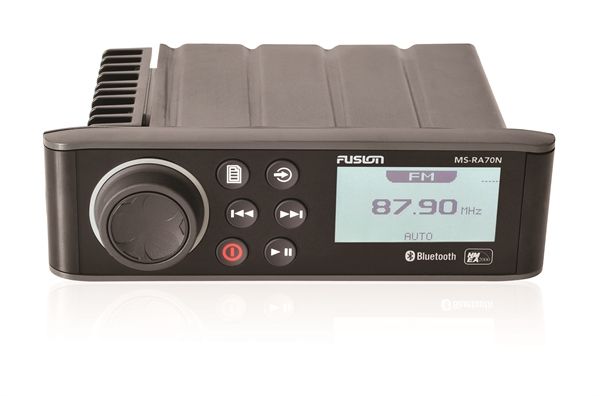

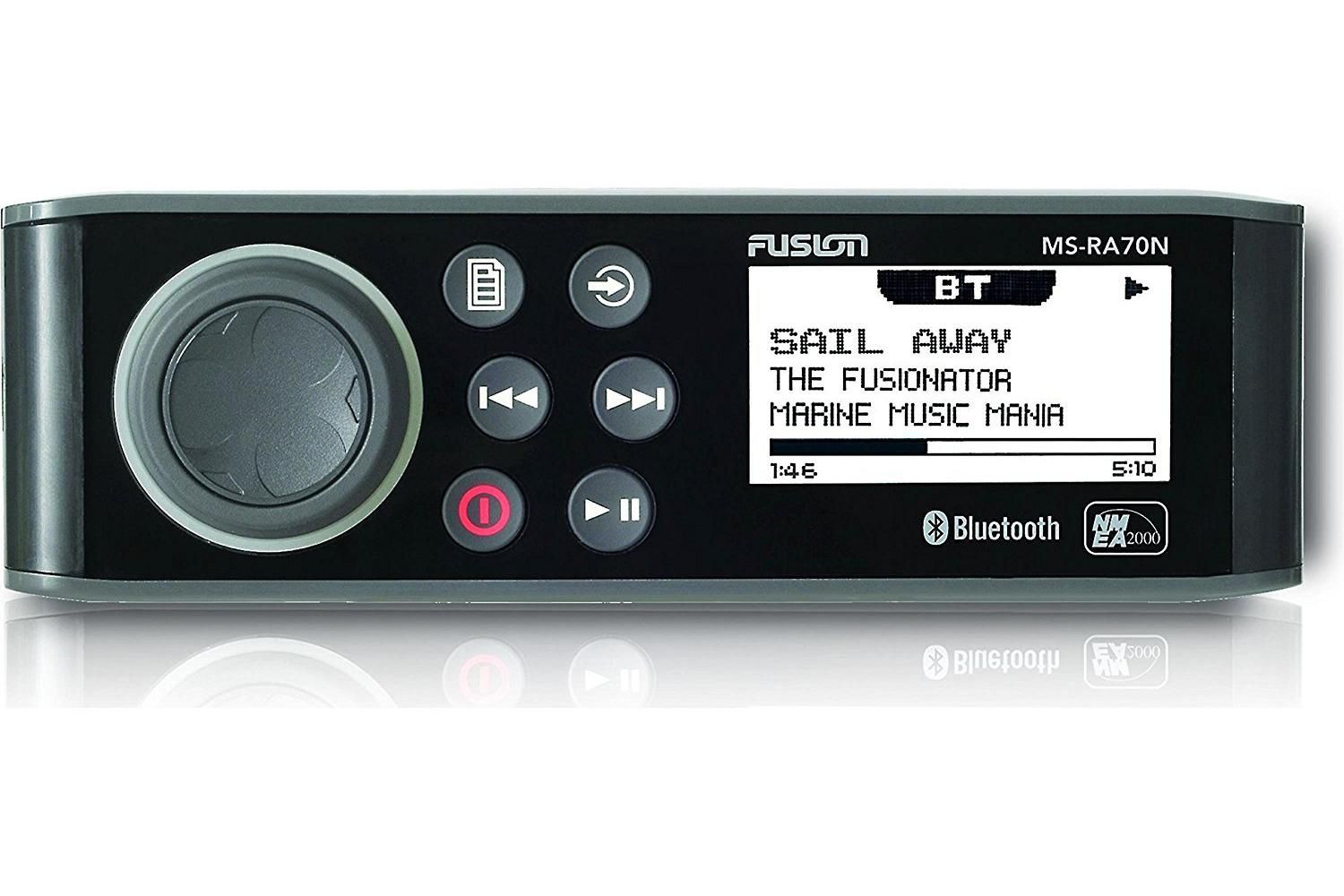

Fusion MS-RA70N marine stereo NMEA 2000 – IPX7 and Bluetooth 2 zones

The Fusion MS-RA70N is a compact marine stereo with NMEA 2000 and Bluetooth, designed for marine use. This head unit easily replaces a standard DIN radio and can be flush-mounted or flush-mounted. With two audio zones, USB MP3, and AM/FM with RDS, you can control your music on board, while the IPX7 front panel and optically bonded LCD ensure clear viewing.

Key Features

• Fusion-Link via NMEA 2000 for control on compatible MFDs
• A2DP Bluetooth streaming with AVRCP and app control (Apple/Android)
• IPX7 water-resistant front with optically bonded LCD
• 2 audio zones with zone names; line and sub output (requires amplification)
• USB MP3 playback and 1x stereo RCA AUX input
• AM/FM tuner with RDS; DAB+ ready with MS-DAB100A (optional)
• Replaces standard DIN radio; can be mounted flat or flush in glass helmet
• 200 W peak power (@ 4 Ω)

Easy integration and operation on board

Using Fusion-Link over NMEA 2000, the MS-RA70N connects to supported multifunction displays, allowing you to easily control your audio from the main screen. Control is also possible with a Fusion NRX remote control on the same NMEA 2000 network, and via Bluetooth via the Fusion-Link app for iOS and Android. With two independently adjustable zones, zone naming, and separate line and sub outputs (with additional amplification), you can tailor the sound to any room on board.

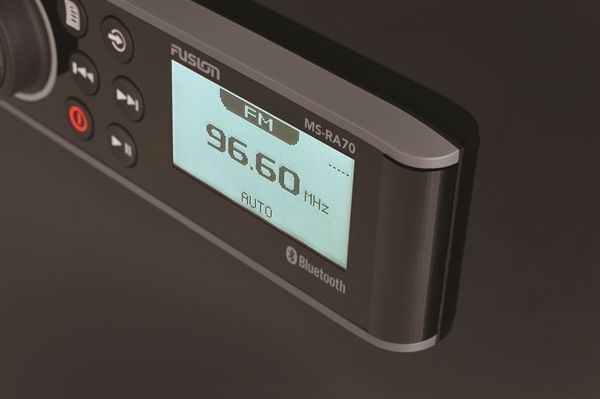

The front panel is IPX7 waterproof when properly mounted, and the optically bonded 128x64 LCD remains easily readable. The unit supports USB MP3, AUX, AM/FM with RDS, and is DAB+ ready with the MS-DAB100A (sold separately). Its slim design fits into a standard DIN recess, and you can choose flush or flat mounting for a sleek look.

Specifications

• Brand: Fusion
• Model: MS-RA70N
• Tuner: AM/FM with RDS (where available)
• Tuner regions: USA, Australasia, Europe and Japan
• User interface languages: English, French, German, Spanish, Dutch, Italian
• Peak power: 200 W max. (@ 4 Ω)
• Audio zones: 2 amplified zones; zone names up to 10 characters
• Line out: 2 (1× L+R per zone; requires amplification)
• Subwoofer out: 1 (Zone 1; requires amplification)
• Inputs: 1× stereo RCA (AUX)
• USB: 1× USB (back), supports 1A charging
• Audio formats via USB: MP3
• iPod/iPhone: Made for iPod and iPhone; IAP 2 protocol
• Android AOA: Support for compatible Android devices (AOA)
• DAB+ ready: MS-DAB100A required (sold separately)
• Display: 128×64 monochrome, optically bonded LCD
• Waterproofing: IPX7 from the front panel (correctly mounted)
• Chassis: Isolated composite with aluminum heat sink
• Bluetooth: A2DP streaming with AVRCP
• Fusion-Link Wireless: App control via Apple App Store and Google Play; Fusion-Link Lite via Garmin Connect IQ
• ANT technology: Control via compatible Garmin watch
• NMEA 2000 certified: LEN: 1
• Fusion-Link Wired: Compatible with NRX series and supported MFDs; requires existing NMEA 2000 network
• Physical dimensions (W × H × D): 188 × 60 × 123.5 mm (7-7/16" × 2-3/8" × 4-7/8")
• Installation dimensions (W × H × D): 162 × 51 × 100 mm (6-3/8" × 2" × 3-15/16")
• MPN: MS-RA70N

Why choose Fusion

Fusion develops marine audio systems specifically designed for onboard use. Thanks to its focus on integration via Fusion-Link and NMEA 2000, the controls work seamlessly with compatible MFDs and accessories. With thoughtful designs and a robust finish, Fusion delivers reliable solutions for your onboard audio needs.

Order now

Give your boat a sleek and versatile audio upgrade with the MS-RA70N. Order easily from Watersports4fun and expand your system with the accessories you need. Have questions about compatibility or installation? Feel free to contact us; we're happy to help.

This boat radio is a versatile marine stereo and head unit for sailboats and powerboats, featuring flush-mount installation options, dual zones, and NMEA 2000 audio integration. Thanks to its IPX7 front panel and Bluetooth streaming, you can listen via USB or AUX, with control via an MFD, NRX remote, or a compatible Garmin watch.
