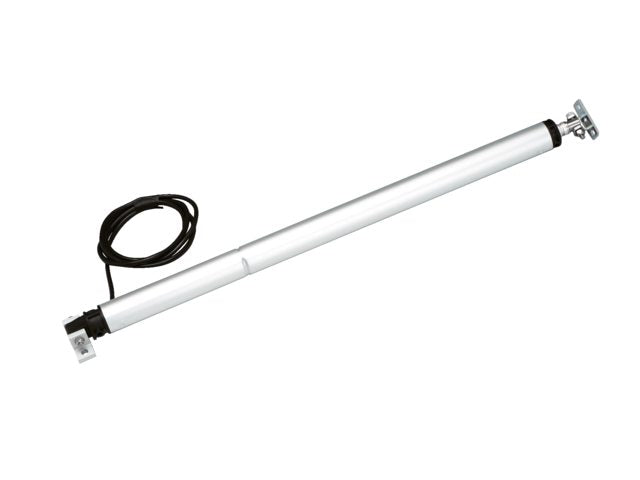

Ultraflex Ulysses 1824 hatch lift stroke 180 mm (7") 24V

The Ultraflex Ulysses 1824 is an electromechanical hatch lift with a 180 mm (7.22") stroke, specifically designed for use on board pleasure boats. This 24V actuator opens and closes a hatch or engine hatch with the push of a button, delivering a push/pull force of up to 650 N. It comes with mounting feet and is equipped with electronic end stops and a circuit breaker for safe operation.

Plus points

• Easy to operate: open/close with one push of a button
• Powerful: push and pull up to 650 N (65 kg)
• Opening up to 180 b0 for maximum accessibility
• IP65 protection for marine conditions
• Electronic end stop and circuit breaker against overload
• Complete with mounting feet; suitable for single mounting
• Expandable with separately available relays and switches

Specifications

• Brand: Ultraflex
• Model: Ulysses 1824
• Stroke: 180 mm (7 22)
• Power supply: 24V
• Max. load: 650 N (65 kg / 144 lbs)
• Diameter: d834 mm
• Protection class: IP65
• MPN: 43464002

This electric hatch lift is a compact actuator for yacht applications, ideal for opening a hatch or engine hatch on board. Thanks to its aluminum ram arm and IP65 protection, it operates reliably in a marine environment; please check whether the stroke length and maximum load are suitable for your application.
